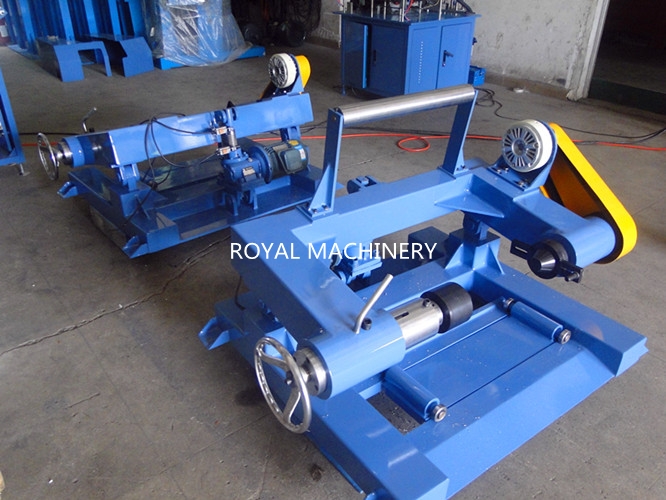

electrical lift magnetic pay off
usage:
electrical lift magnetic pay off used for big size copper wire, aluminum wire, core wire, cable and other wires pay off. the pay off use motor drive worm reducer lift pay off reel, magnetic clutch control pay off tension.
machine features:
1. the pay off no need base construction, the reel can running horizontally into the tighten tip cones, the install is much easy then traditional stand column pay off. Which can be set on anywhere you want.
2. save labour: the pay off use electrical tighten/lift, no need much labour in the process.
3. safety guarding: the pay off with motor overload protect, electricity lack phase protect, lift limit, and other protection, greatly reduce the working failure, makes the machine much more durable.
technical parameter:
pay off models: 630,800,1000, 1250
pay off machine structure: eletrical lift, double rod support, magetic tension, shaftless passive pay off
pay off suitable reel size: Ø630, Ø800, Ø1000, Ø1250
pay off products range: Ф2.0~15.0mm
pay off line speed: Max. 300m/min
pay off reel lift: electrical
pay off reel tighten: hand wheel as standard, pnuematic tigten as optional
pay off Brake: magnetic brake
pay off tension control: magnetic clutch control pay off tension, adjust pay off tension through asjust voltage on the tension broad, spring counter weight tension dancer to balance the pay off tension.
pay off wire break: wire break inspect, auto alarm and stop the machine when wire break.
pay off bearing weight: 1500kg
