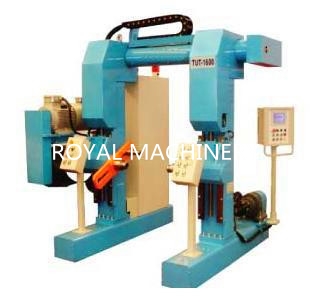

selft traversing pay off, portal type
usage:
portal type traversing pay off can used for middle or big size extrusion lines, twisting machines, laying up machine and other machine, the whole pay off can move back and forth for traversing, motor driven pay off, ensure the pay off performace keep stable.
machine features:
1. whole set of the pay off move back and forth to traverse, traverse performance is much better, and occupied small space.
2. pay off tension auto set, travese pitch auto set.
3. the pay off stand stable in the working process.
4. the pay off working process is controlled in the HMI, the appearance is better, and easy to operate.
5. safety guarding: the pay off with motor overload protect, electricity lack phase protect, lift limit, and other protection, greatly reduce the working failure, makes the machine much more durable.
technical parameter:
pay off structure: self traversing pay off, portal type
pay off reel dia.: Φ1600, Min Φ1000
pay off wire dia.: Φ8-40mm
pay off line speed: 7-100m/min, 5-75Hz
pay off reel lift: electrical lift
pay off reel tighten: motor tigthen in two direction.
pay off Brake: pnuematic brake
pay off tension control: counter weight pay off tension, adjust speed through change the position of the weight block, potentiomenter anger send out voltage signal control pay off tension.
pay off wire break: wire break machine auto alarm and stop.
pay off tension range: 0-15000g
pay off guiding pulley: pulley dia.Φ400,grooves 1+1+1, "V" type
pay off driving motor: 5.5KW/7.5HP worm speed reducer.
pay off bearing weight: Max.5000kg
