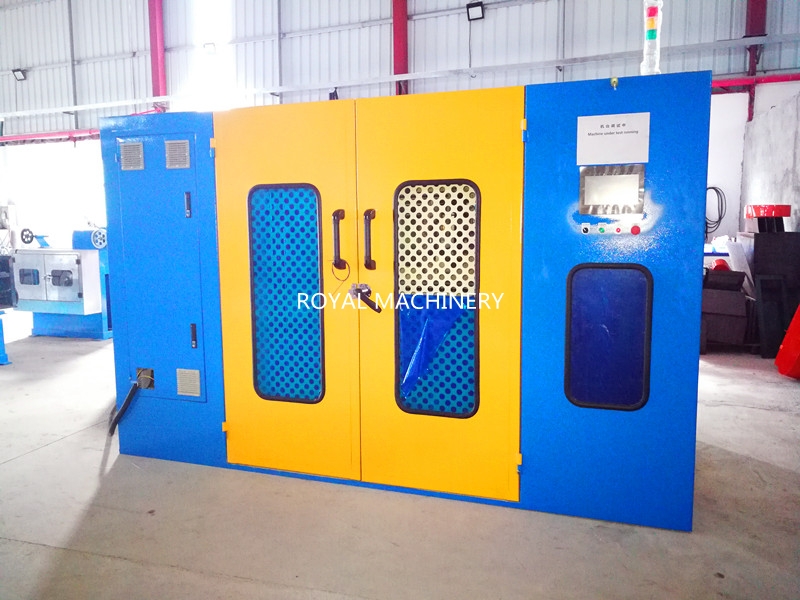

DT630 double layer triple twisting machine
usage:
triple twisting machine used for Lan cable( cat5, cat5e, cat6, cat6e,cat6a, cat7), instrument cable, control cable or other cables two core wires pair twisting, twinning. back twist rate can be set on HMI 0-100%. the twist bow running one circle, get three twist pitch, when running at the same RPM, triple twist line speed is 1.5 times of double twister, 3 times of single twister.
features:
1. Royal machinery triple twisting machine use triple twisting pitch, when back twist rate at 33%, line speed is 1.5 times of the double twist.
2. Royal machinery triple twisting machine use heave loading design, avoid shaking and noise at high speed running.
3. Royal machinery triple twisting machine use servo motor electrical twist pitch, set pitch on HMI, PLC control, precision+/-2%。
4. Royal machinery triple twisting machine use motor controlled take up tension, tension keep consist from empty reel to full reel.
5. Royal machinery triple twisting machine use integrate design, easy to transport.
Back twister:
A. Motorized pay-off (outside)
a. Suitable bobbin: ∮630mm*475mm, or client provide bobbin size.
b. Suitable wire: Φ0.8-1.5mm
c. Pay-off tension: 0.6-3KG
d. Line speed: 250m/min, subject to wire diameter.
e. Brake device: GV18-200W-5S gear motor with dancer wheel.
B. Motorized pay-off (inside)
a. Suitable bobbin: ∮630mm*475mm, or client provide bobbin size.
b. Suitable wire: Φ0.8-1.5mm
c. Pay-off tension: 0.6-3KG
d. Rotational speed: max. 2000rpm.
e. Line speed: 250m/min, subject to wire diameter.
F. Brake device: GV18-200W-30S gear motor with dancer wheel.
C. Drive
Main drive: 10HP AC Futian motor with PG card tracking line speed.
D. Capstan
a. Mode: horizontal type
b. Wire tension: max. 3KG
c. Line speed: 250m/min, subject to wire diameter.
d. Capstan pulley: multi grooves, ∮237.1
e. Drive: 750W Inovance servo motor with driver
Triple twister:
A. Suitable bobbin: ∮630mm*475mm, or client provide bobbin size.
B. Line speed: 250m/min, subject to wire diameter.
C. Twisting pitch: 1mm-60mm, set by touch screen.
D. Traverse pitch: max. 10mm
E. Main drive: 10HP AC Futian motor with PG card.
F. Bobbin lifting/lowering: by hydraulic
G. Main shaft lubricating: molybdenum disulphide grease lubrication
H. Stop: the machine will automatically stop when wire break interior or exterior or length counter reaches the preset data.
I. Noise index: no more than 85dB
J. Safety: the machine doesn’t run when the door open or the lifter not in the proper position.
Control system:
A. Weilun 5.7 inch touch screen, Siemens PLC
B.Control switches, button, indicator lamps(CHINT), contactors,air switches(SHIHLIN), relays(OMRON)
C.AC Motors made by Futian, Gear Motor made by Tunglee, Frequency Inverter made by Inovance.
machine inner structure:
