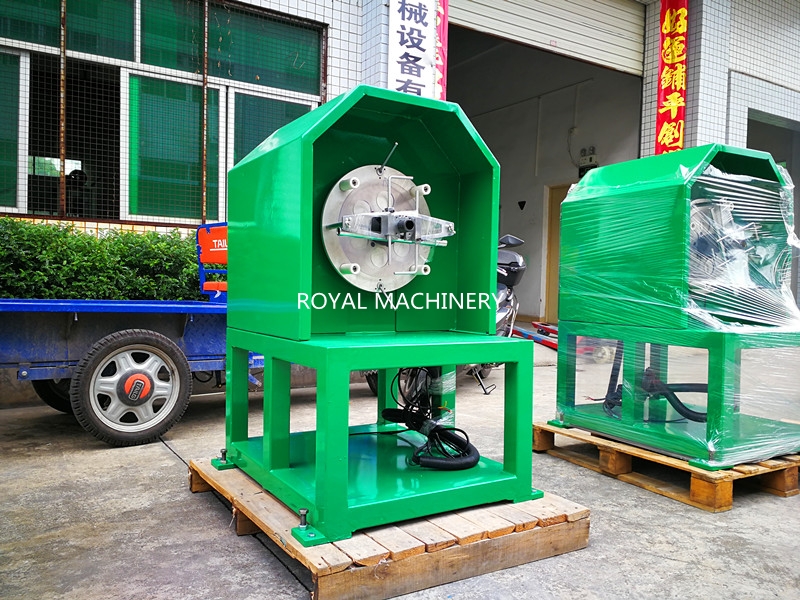

Pad type center taping machine
usage:
the pad type center taping machine can cooperate with twisting machine, stranding machine, extrusion line for Lan cable, control cable, instrument cable, power cable and other cables tape wrapping, finish the bunching, laying up or cable sheath extruding and tape wrapping in one process. the constant tension control system, greatly improve the shielding performance.
machine featuers:
1. Royal machinery pad type taping machine, use magnetic brake to control the taping tension, the tension keep constant from full pad to empty pad, no need manually adjustment in the working process, greatly improve the taping performance.
2. Royal machinery pad type taping machine use sample machine structure, tension set on control panel, which is cost effective and easy to operate .
technical parameter:
wire diameter: 2.0-20.0mm
line speed: 5-50m/min
tape: aluminum foil, polyster, PI, copper wire and others
tape spooler size: OD Max.450, bore size 2" (50mm) or 3" (76mm)
tape width: 5-40mm
tape thickness: 0.02-0.20mm
tape pay off: passive tape pay off
tension control: magnetic brake tension control system, adjust tension through change the voltage on the control panel, tension range 30-300g
tape brake testing: tape break machine auto alarm and stop.
tape finish testing: tape finish machine auto alarm and stop
taping die: use tube type taping die, avoid wire shaking in the tape process.
machine inner structure:
