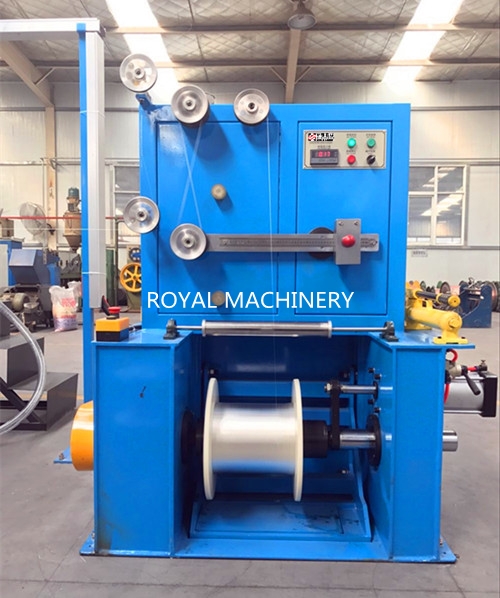

hydraulic lift magnetic pay off
usage:
hydraulic lift magnetic pay off used for small size copper wire, aluminum wire, core wire, cable and other wire material pay off
machine features:
1. easy reel load: shaftless double side tighten; move reel by sliding wheels, easy to match with the tighten tip cone; hand wheel tigthen, easy to load and unload the reels. hydraulic lift.
2. stable tension control: magnetic tension control, add spring wheels to balance pay off tension, reduce wire clamp, bad traverse caused unstable tension. hand wheel tighten to avoid tension interference, acheive the contant tension control.
3. safety guarding: the pay off with motor overload protect, electricity lack phase protect, lift limit, and other protection, greatly reduce the working failure, makes the machine much more durable.
technical parameter:
models: 300，400, 500, 630, 800
machine structure: hydralic lift, magetic tension, shaftless passive pay off
suitable reel size: Ø300, Ø400, Ø500, Ø630,Ø800
products range: Ф0.5~10.0mm
line speed: Max. 500m/min
reel lift: hydraulic lift
reel tighten: hand wheel as standard, pnuematic tigten as optional
Brake: magnetic brake
tension control: magnetic tension, adjust pay off tension through asjust voltage on the tension broad, spring counter weight tension dancer to balance the pay off tension.
wire break: wire break inspect, auto alarm and stop the machine when wire break.
bearing weight: 800-1000kg
