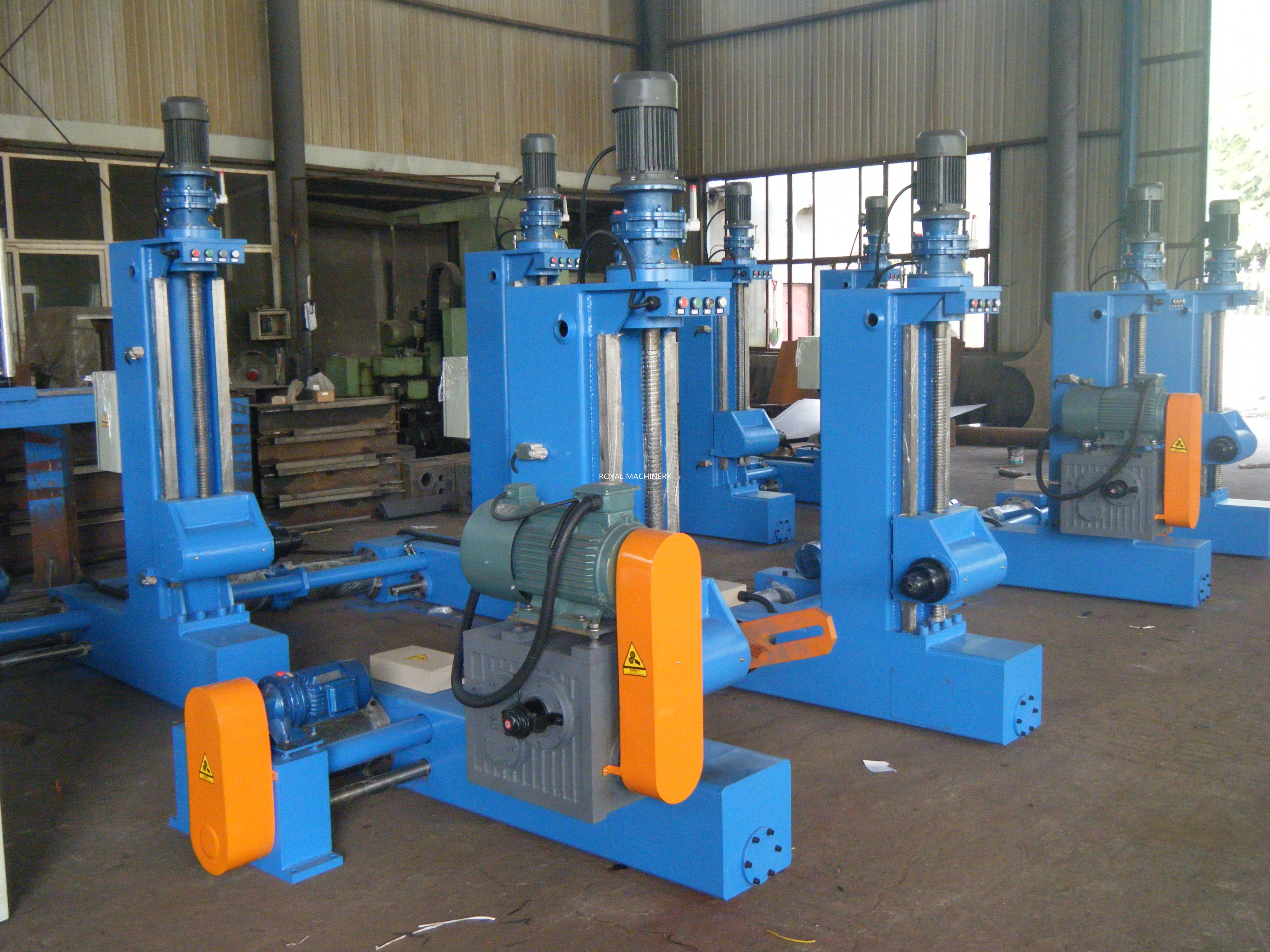

pay off --- magnetic tension control
usage:
magnetic portal type pay off can used for middle or big size extrusion lines, twisting machines, laying up machine and other machine. the portal pay off use double motor lift pay off reels, double motor direction tighten, magnetic pay off tension control.
machine features:
1. pay off no need base construction, the reel can running horizontally into the tighten tip cones, the install is much easy then traditional stand column pay off. Which can be set on anywhere you want.
2. pay off use two side tighten: roll the reel to the tigthen between the two tighten tip cones, press left/right tighten button, the two stand column will slide together in two side, tighten the reel, no need to move reel in the tighten process.
3. save labour: pay off use electrical tighten/lift, no need much labour in the process.
4. safety guarding: pay off has motor overload protect, electricity lack phase protect, lift limit, and other protection, greatly reduce the working failure, makes the machine much more durable.
technical parameter:
pay off model: Ø1600, Ø2000, Ø2500, Ø3150
pay off structure: no base column stand magnetic pay off, no base construction, two direction tigthen, magnetic pay off
pay off reel size: Ф1000, Ф1250, Ф1600,Ф2000,Ф2500, Ф3150
pay off products range: Ф8~120mm
pay off line speed: 5-75Hz, 7-1000m/min
pay off reel lift: electrical
pay off reel tighten: motor tighten on two side.
pay off Brake: magnetic brake
pay off tension control: magnetic tension, 20KG.M magnetic clutch. adjust pay off tension through asjust voltage on the tension broad.
pay off tension range: 2000-20000g.
pay off wire break: wire break inspect, auto alarm and stop the machine when wire break.
pay off guiding pulley: one groove + one groove + one groove, " V" type
pay off bearing weight: Max.5000-18000kg
